Chapter 1: Code and Figures

R Code

All verbatim chunk codes used in the Chapter are available in hello.R

Figures

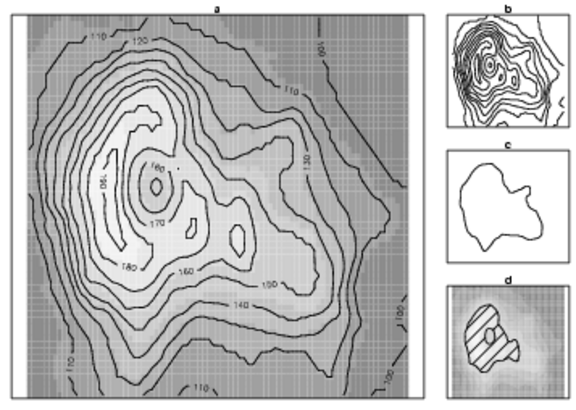

Figure 1.3

Click on figure to go back to Chapter gallery. Please see preceeding chunks for values not set in this chunk (hello-013.R).

def.par <- par(no.readonly = TRUE)
opar = par(no.readonly = TRUE)
par(mar = rep(1,4))
library(sp)
data(volcano)
grys <- grey.colors(8, 0.55, 0.95, grey_gamma)
layout(matrix(c(1,2,1,3,1,4),3,2,byrow=TRUE), c(3,1))
image(volcano, axes=F, col=grys, asp=1, main="a")
contour(volcano, add=T)
box()
image(volcano, axes=F, col='white', asp=1, main="b")
library(maptools)
x2 = ContourLines2SLDF(contourLines(volcano))
plot(x2, add=T)
box()
image(volcano, axes=F, col='white', asp=1, main="c")
plot(SpatialPolygons(list(Polygons(list(Polygon(coordinates(x2[x2$level == 140,]))), ID="x"))),
	add = T)
box()
image(volcano, axes=F, col=grys, asp=1, main="d")
x3l1 = coordinates(x2[x2$level == 160,])[[1]][[1]]
x3l2 = coordinates(x2[x2$level == 160,])[[1]][[2]]
x3 = SpatialPolygons(list(Polygons(list(Polygon(x3l1,hole=F), Polygon(x3l2,hole=T)), ID=c("x"))))

SP2TRI = function(x, debug = TRUE){
    p = x@polygons[[1]] # object of class Polygons
    p1 = p@Polygons[[1]] # outer Polygon
    p2 = p@Polygons[[2]] # inner Polygon
    stopifnot(!p1@hole)
    stopifnot(p2@hole)
    # find nearest point
    allcoords = rbind(p1@coords, p2@coords)
    n1 = nrow(p1@coords)
    n2 = nrow(p2@coords)
    dists = as.matrix(dist(allcoords))[((n1+1):(n1+n2)),1:n1]
    wm = which.min(dists)[1]
    ind1 = (wm %/% n2) + 1
    ind2 = wm %% n2
    if (debug)
        print(c(ind1,ind2))
    #plot polygon points:
    p1c = p1@coords
    p2c = p2@coords
    #plot shortest distance:
    if (debug)
        lines(rbind(p1c[ind1,], p2c[ind2,]))
    if (debug)
        points(rbind(p1c, p2c))
    p = rbind(p1c[c(ind1:n1,1:ind1),], p2c[c(ind2:n2,1:ind2),], p1c[ind1,])
    #polygon(p, col = 'red', border = NULL)
    polygon(p, angle=45, border = NA, density = 12)
}
plot(x3, col = 'transparent', add = T)
SP2TRI(x3, F)

box()
par(opar)
par(def.par)
cat("\n")
layout(matrix(1))
grey_gamma <- 2.2
